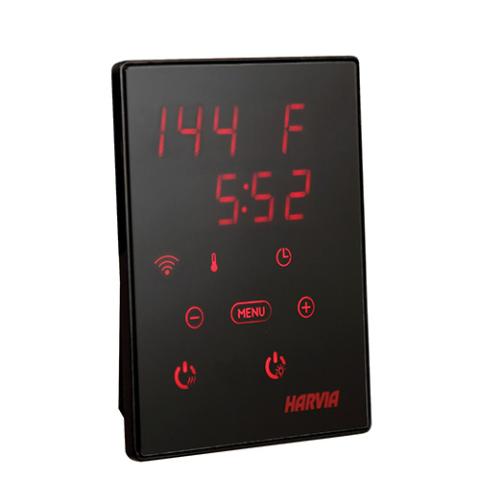

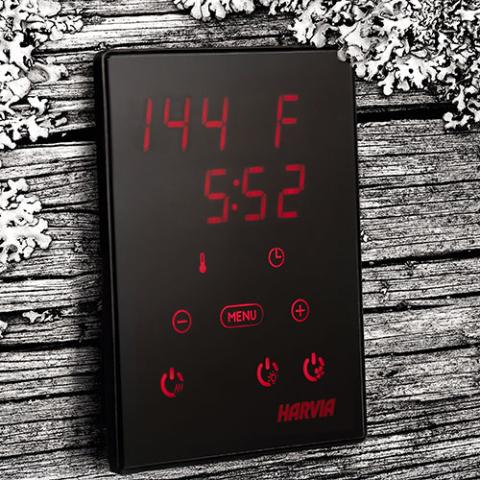

Harvia Xenio CX30C-U3 Digital Control Panel

The Harvia Xenio CX30C-U3 is a touch control panel designed for Virta Combi sauna heaters (3-phase). It provides precise control of temperature and humidity, allowing heater and steamer functions to be managed independently. This compact unit also controls lighting, fans, and timer delay settings, offering full-featured management of your sauna environment. With a sleek design and reliable operation, the Xenio CX30C-U3 ensures optimal performance for saunas equipped with Combi heaters up to 10.8 kW.

Key Features

• Compatibility: Works with Harvia Virta Combi Series Sauna Heaters (3-phase).

• Capacity: Supports sauna heaters up to 10.8 kW.

• Control Options: Independently manages heater and steamer, regulates temperature and humidity.

• Additional Functions: Controls lighting, fans, and timer delay settings.

• Installation: Can be wall-mounted or surface embedded.

• Design: Sleek black finish with intuitive digital interface.

Specifications

• Model: CX30C-U3

• Voltage: 208V

• Phase: 3

• Maximum Load: 10.8 kW

• Temperature Range: Up to 194°F

• Timer: 60 minutes

• Certifications: CE, EAC

• Material: Plastic housing

• Dimensions: 3.4"W (86mm) x 1"D (25mm) x 4.4"H (111mm)

• Weight: 0.4 lbs

• Included: Digital Control Panel, Data Cable, Power Unit, Temperature Sensor, Installation & Operation Manual

• Warranty: 1 Year Limited Warranty
